Change the valve.
Not the pipework.

MODU ONE® is a Modular Valve Ecosystem. Every body shares one connection interface and one face to face dimension, so the piping never changes.

See the interface

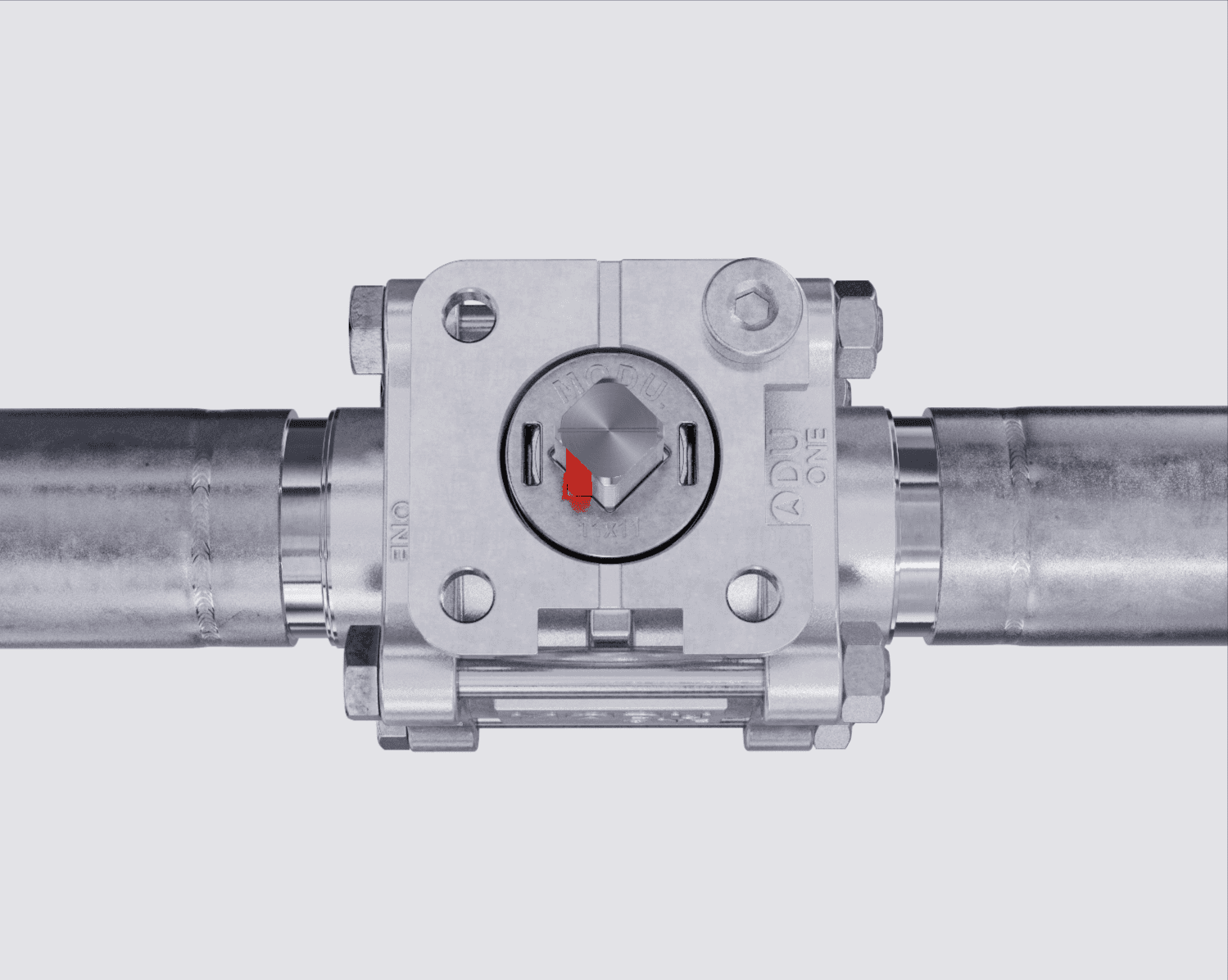

MODU ONE A10 three piece ball valve, DN25, ISO 1127 welded ends, shown with its ISO 5211 mounting flange and MODU Safe Mounting stem.

Rendered from the A10 DN25 3D model. Illustration: the B10 centre part is shown in A10 form.

Face to face, DN25
140mm
±1

One valve, one dimension.

An A10 three piece ball valve, DN25, with ISO 1127 welded ends. The number on the left is the face to face dimension, and it is the only thing on this page that will not change.

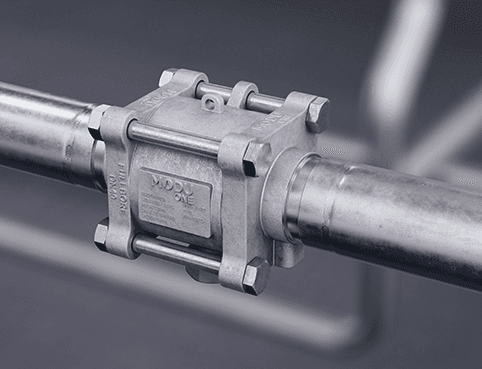

A10 ball valve, DN25, installed in a pipe.
A10, DN25, in the line.

Undo four tie bolts.

Four tie bolts hold the centre part between two end caps. The end caps are welded into the line once. Everything after that happens between them.

A10 in the pipe, nuts off and tie bolts drawn out, end caps still in the line.
Tie bolts out.

The centre part lifts out.

The ball valve centre part comes straight up and out. The end caps do not move. The pipework does not move. Nothing is cut and nothing is welded.

The centre part removed, the two end caps still welded in the pipe with an empty gap between them.
An empty gap, the line untouched.

A different body seats in.

A B10 soft seated check valve centre part seats into the same end caps. A ball valve became a check valve without touching the line.

A centre part lowering into the gap between the same two end caps.
Seated into the same end caps.

The number did not move.

Different valve, different function, same 140 mm. That holds for every connection standard MODU ONE® offers, threaded and welded, in full bore and reduced bore, and it holds at every size.

Valve bolted back into the line, face to face dimension unchanged.
Face to face unchanged.

The ecosystem

Four things that do not change.

One face to face dimension

Shared across every body and every connection standard. 105 to 260 mm, by size, held to ±1 mm.

One connection interface

The same bolted end caps take threaded BSPP and NPT, ISO 1127 and SMS 3008 welded ends, in full bore and reduced bore.

Shared service parts

The seat ring in a B10 check valve is the same part as the seat ring in an A10 ball valve. Gasket kits are shared across the ecosystem.

Full traceability

Every valve has its own serial number on the body and the connections. All wetted parts are traceable in MODU Cloud™.

Face to face

Six valve types. One face to face.

Pick a valve type. The dimension at every size stays where it is.

A10 Ball valve 3-piece ball valve, PN40
DN25 140 mm
mm
100
200
300
105 mm
125 mm
140 mm
150 mm
160 mm
180 mm
200 mm
230 mm
260 mm
Nominal size, DNFace to face, in mm. The same for all six valve types and every connection standard.
Face to face in mm by size and valve type
SizeA10B10C10D10E10F10
DN15105105105105105105
DN20125125125125125125
DN25140140140140140140
DN32150150150150150150
DN40160160160160160160
DN50180180180180180180
DN65200200200200200200
DN80230230230230230230
DN100260260260260260260

Supported connections

Seven connections. The face to face does not change.

The connection sits on the end cap. Weld it, thread it or clamp it: the valve keeps the same face to face at every size, for every connection type.

ISO 1127140 mm
SMS 3008140 mm
BSPP140 mm
NPT140 mm
ASME BPE 16 swg140 mm
SCH40140 mm
DIN 11850140 mm

Features

Built into the ecosystem.

Double Block & Bleed™

Two A10 ball valves and one drain valve on one MODU block. Two separate barriers, and the LUG design lets you service each valve on its own.

Datasheet PDF

Integrated Heating

A heating jacket replaces the standard flange. Steam or hot water keeps viscous media fluid in the valve body. Four ports, and service without a stop in the heating circuit.

Datasheet PDF

MODU Safe Mounting®

A guided interface between ball and actuator. The actuator goes on one way only, so SCADA and PLC always show the true valve position.

Read more

MODU Multi-Purpose Port™

One port in every MODU ONE® connection for a thermometer, pressure gauge, air vent or drain valve. No welding. Drain and vent without removing parts.

Read more

MODU ONE® Traceability

Every valve is checked and has its own serial number. The certificate covers the materials, and also the valve torque and the torque of nuts and bolts.

Read more

MODU Cloud Pro

Certificate packages for distributors, end customers and QA teams. Search by serial number, order number or tag, then view and download the 3.1 and 2.2 certificates.

Open MODU Cloud

Ecosystem accessories

Actuate it. Measure it. No welding.

MODU S10

MODU S10

Double acting pneumatic actuator, air/air. MODU Safe Mounting®, ISO 5211 connection, anodised aluminium body.

Product pageDatasheet PDF
MODU S11

MODU S11

Spring return pneumatic actuator, air/spring. MODU Safe Mounting®, ISO 5211 connection, anodised aluminium body.

Product pageDatasheet PDF
MODU Multi-Purpose Port

MODU Multi-Purpose Port™ accessories

Thermometer, pressure gauge, drain valve, air vent and more. Fit them to any MODU ONE® connection, without welding.

Product pageOne-pager PDF

Where to buy

Find a distributor.

Europe Belgium · Netherlands · Luxembourg · Denmark · Germany · Norway 4 distributors North America USA 3 distributors Middle East and North Africa Pakistan · Saudi Arabia · United Arab Emirates 1 distributor Sub-Saharan Africa South Africa 1 distributor Asia-Pacific China 1 distributor

Europe

North America

Middle East and North Africa

Sub-Saharan Africa

Asia-Pacific

Partnership

Become a distributor.

Sell MODU ONE® in your market. Talk to our team about a partnership.

Become a distributor

FAQ

Questions, answered.

Something else? Contact us.

What is a modular valve?
A modular valve shares the same face to face dimensions, spare parts and connections with the other valve types in its ecosystem. You can change one valve type for another without changing the pipework, and it stays backwards compatible.
What size range does MODU ONE® cover?
DN8 to DN100 (¼″ to 4″), depending on the valve type. The A10 ball valve and the B10 check valve are dimensioned from DN15 to DN100 in both datasheets; the A10 also comes in DN8 and DN10.
Does MODU ONE® come in both full and reduced port options?
Yes. MODU ONE® is offered in both full bore and reduced bore.
What is the pressure class of MODU ONE®?
The A10 ball valve is PN40. The B10 check valve is PN63. See the datasheet of each valve for the pressure and temperature limits.
Which material is used to manufacture MODU ONE®?
A10, B10, C10, D10, E10 and F10 are made of stainless steel CF8M (1.4408).
Do the connections change the face to face?
No. Each size has one face to face for every connection type: welded, threaded or hygienic.
Where are you headquartered?
In Vejle, Denmark, together with MODU Valves A/S at Løversysselvej 4, 7100 Vejle.
Where can I access MODU Cloud™?
At cloud.modu-one.com. Search by serial number and download your certificates.
Who is behind MODU ONE®?
A team of valve specialists in Vejle, Denmark, with decades of experience. MODU ONE® is owned by MODU Valves A/S. Read more at moduvalves.com.

Founder letter

Something happened to valves.

Never before have there been so many types of valves, dimensions, connections and spare parts. Why we built a modular system, in our own words.

Read the letter

Downloads

Full valve data on moduvalves.com.

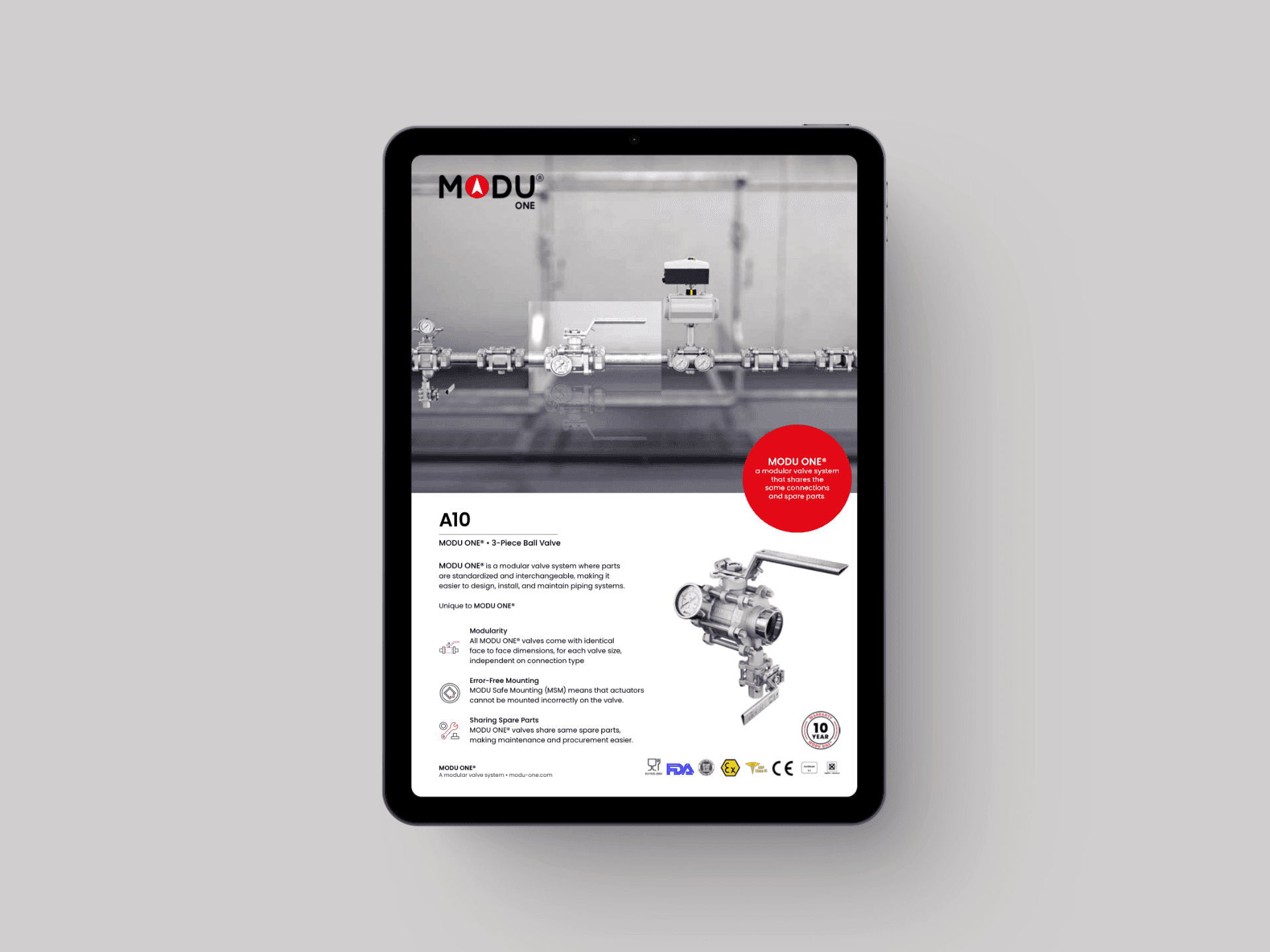

A10 ball valve

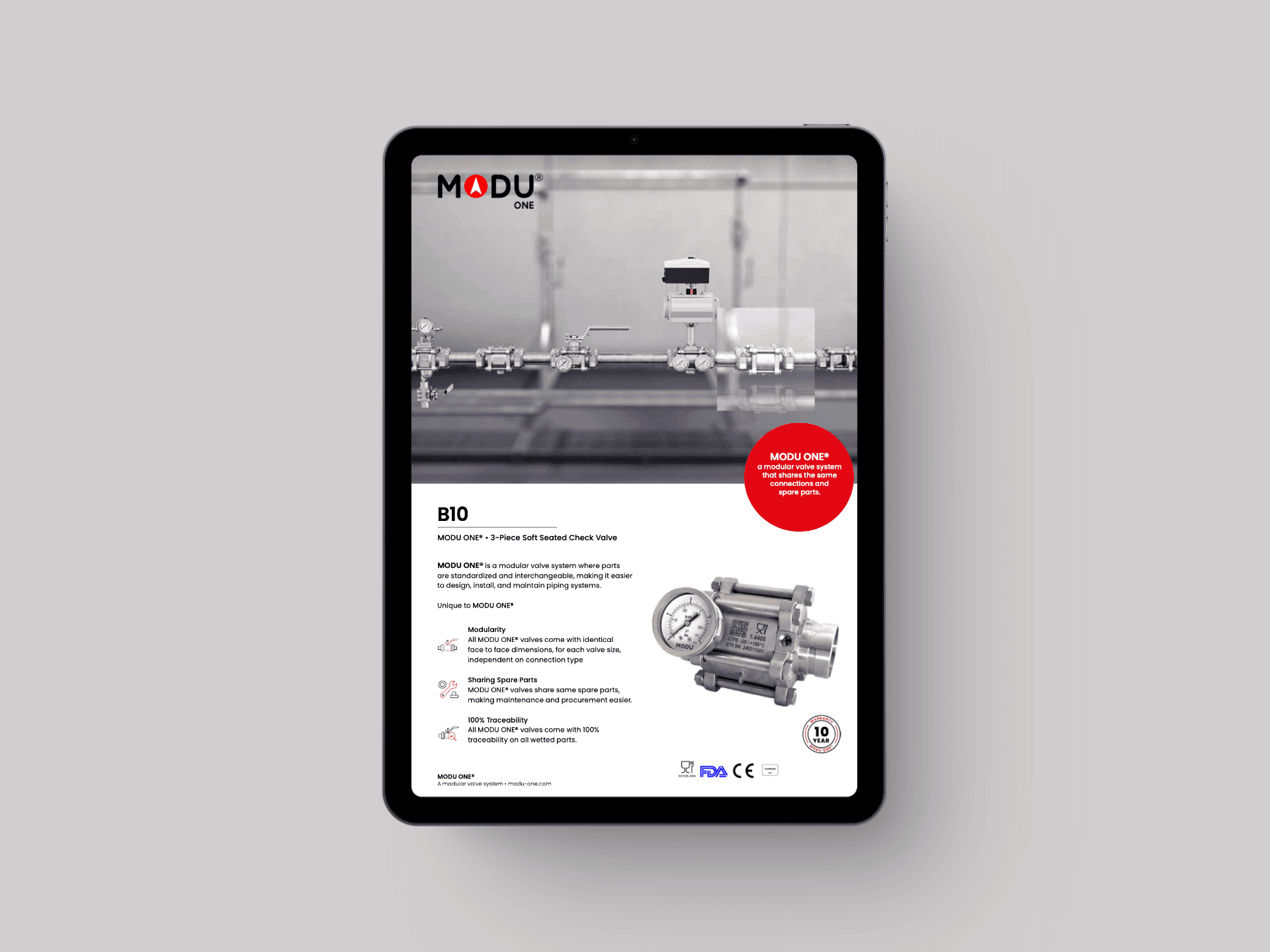

B10 check valve

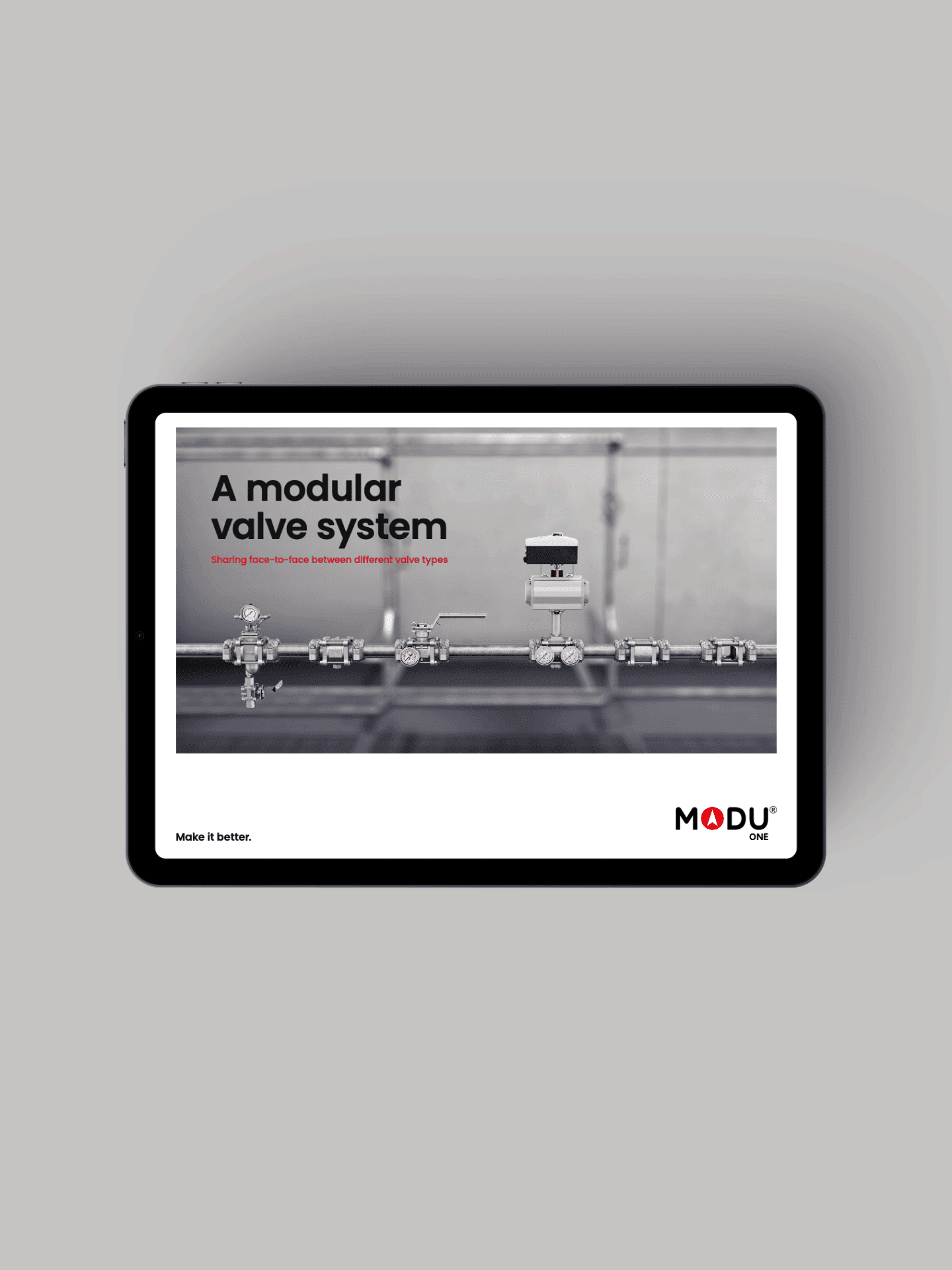

MODU ONE® ecosystem

Proven Performance. Now Modular.

Request a quote Download the catalog
